Operating Principle

Helicoidal impeller is desinged with advanced engineering computations and manufactured with investment casting. It creates flow lines when it begins to rotary motion. So transfer liquid sweeps towards from inlet port to outlet port by effect of flow lines. In the meantime, the pieces in the fluid will neither be damaged nor deformed.

General Characteristic

  • All parts are made of stainless steel and sanitary seal applications are suitable for food codex.
  • Motor speed can be adjusted by the frequency converter. So the desired flow
    rate is provided.
  • It is produced with modern manufacturing methods. In this way, impeller does not make
    any balance. So the pump operates quitely and without vibration.
  • It is quite easy to use and mass flow rate is steady state.
  • Casting material options are current for industrial applications.

Field of Application

  • Food Industry
    • Olive
    • Pickle (Gherkin,Cucumber,Pepper)
    • Fish
    • Tomato Paste
    • Pea
    • Potato
    • Poultry Feathers and Bones





  • Industrial Applications
    • Sludge
    • Hydrated lime
    • Wastewater
    • Animal Waste

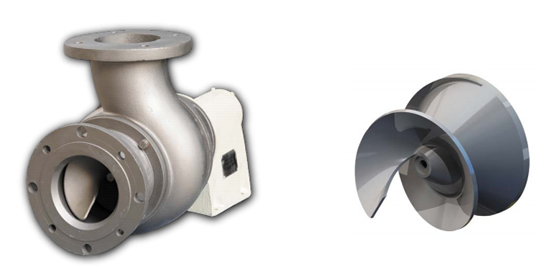

Material

Body : AISI 316L, GGG40

Shaft: AISI 304, AISI 316

Helicoidal Impeller: AISI 316L, GGG40

Mechanical Seal: Inox, Grafit, EPDM (NMR)

Other Parts: AISI 316, AISI 304

Other

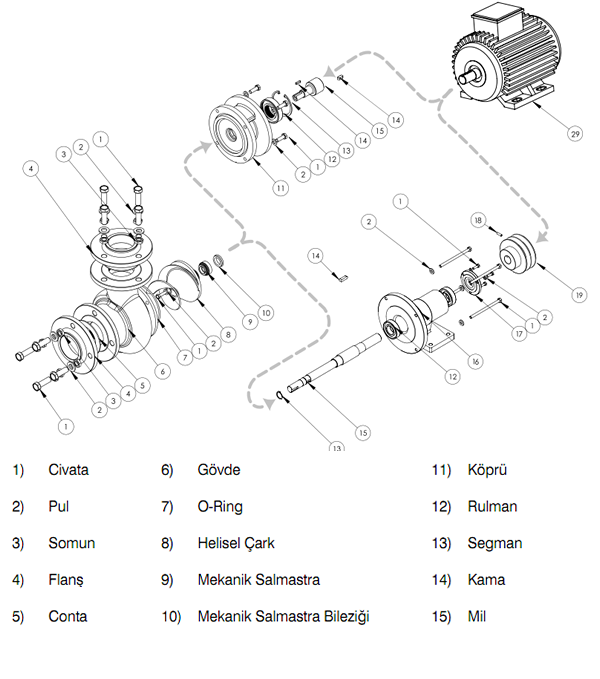

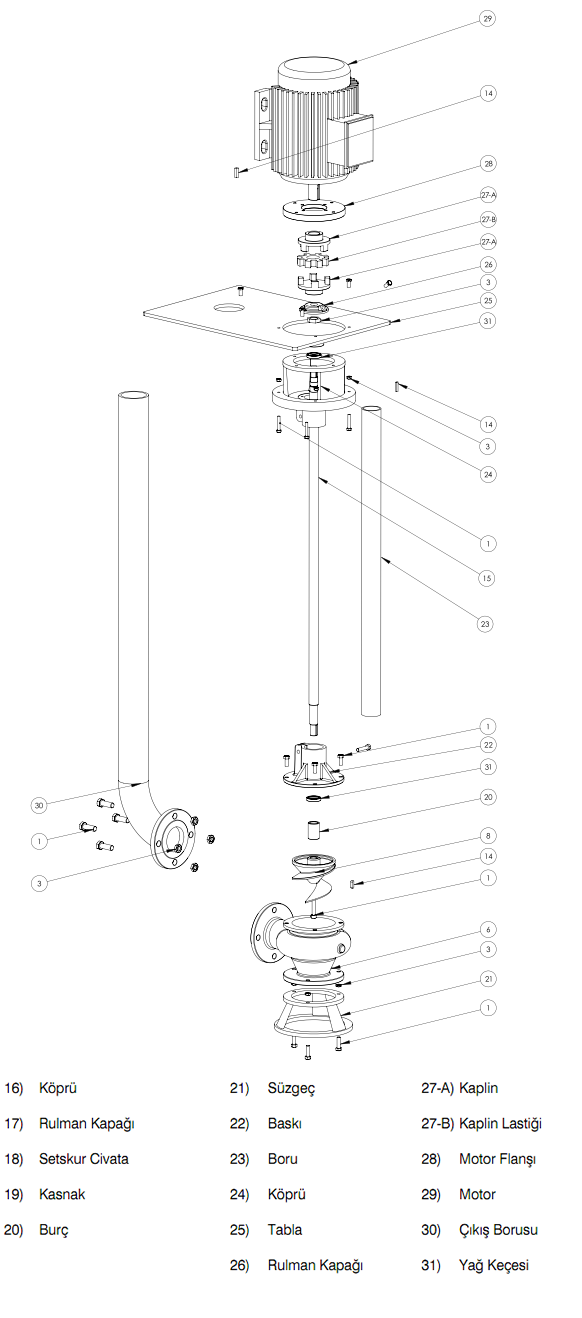

Mounting Types

According to application area, rpm and power, every pump range can be supplied with
different types of mounting.
